USMRPFN10005030AN-40W-9G77 40W, 9.77GHz, ALUMINIUM NITRIDE FLANGED POWER RESISTORS Microwave power resistors on Aluminium Nitride AlN 40W 9.77 3dB 50 x 100 mils manufactured by US Microwaves USMRPFN10005030AN-40W-9G77 40W, 9.77GHz, ALUMINIUM NITRIDE FLANGED POWER RESISTORS Microwave power resistors on Aluminium Nitride AlN 40W 9.77 3dB 50 x 100 mils manufactured by US Microwaves US MICROWAVES 40W, 9.77GHz, ALUMINIUM NITRIDE FLANGED POWER RESISTORS Advanced Microwave Components USMRPFN10005030AN-40W-9G77 FEATURES APPLICATIONS AlN FLANGED POWER RESISTOR High power dissipation while working up to GHz range frequencies Low insertion loss, low temperature coefficient High reliability and ruggedness Wide operating temperature range Available mounting flange: Copper, Nickel plated Microwave and RF high power terminations Resistive microwave power dividers Wilkinson power dividers Power attenuators Microwave power amplifiers 40W, 9.77GHz, ALUMINIUM NITRIDE FLANGED POWER RESISTORS USMRPFN10005030AN-40W-9G77 PRODUCT DESCRIPTION AND SHORT APPLICATION NOTE USMRPFN10005030AN-40W-9G77, 40W, 9.77GHz, Aluminium Nitride (AlN) flanged power resistors are designed to be used as microwave and RF power resistors, power terminations, Wilkinson power dividers, power attenuators, microwave power amplifiers, etc. Flanged thin film power resistors and terminations have low temperature coefficients, low noise and increased long term stability compared to their thick film counterpart (see app note 110). In high power applications, temperature coefficient of resistance and long term stability have to be the best available. TECHNOLOGY DESCRIPTION: SEMICONDUCTOR-THIN FILM MANUFACTURING All thin film microwave products are manufactured using advanced semiconductors and thin film technologies including ultra-stable and self passivating Tantalum Nitride resistors, gold interconnect metallization and reliable MNOS capacitors to achieve excellent uniformity, performance and reliability. Thin film technology is the preferred solution for all applications that require low noise, long term stability and excellent performance at very high frequencies. US Microwaves employs proprietary thin film technologies for deposition of a wide range of resistive films with sheet resistance films from 1Ω/sq to 10,000Ω/sq. All US Microwaves products are available in die form and are ideal for high reliability hybrid and multi chip module applications. All US Microwaves products are manufactured using GOLD CHIP TECHNOLOGY™ a trade mark of Semiconix Corporation. ELECTRICAL/MECHANICAL CHARACTERISTICS PARAMETER VALUE UNITS Resistance range 1 - 100 Ω Maxim Power 40 W Maxim Capacitance 0.3259455 pF 3dB frequency (defined for 50ohm resistance) 9.77 GHz Temperature Coefficient -55C to 150C 100 ppm/°C Tolerances available 1 % Operating Temperature range -65 to 200 °C Working voltage (Vw) SQRT(P*R) V Peak voltage at 25C, 5 sec 1.5x(Vw) V Insulation resistance at 25 C 1e+13 Ω ONLY Proper die handling equipment and procedures should be employed. Stresses beyond listed absolute maximum ratings may cause permanent damage to the device. GENERAL DIE INFORMATION Substrate Thickness [mils] Size [mils] Backside metal Aluminium Nitride (AlN) 30±3 100x50±2 Backside of the die is metallized with standard Ti/Pt/Au compatible with Au-Sn, Au-Ge or silver filled conductive epoxy. Custom metallization is available for special orders. All US Microwaves products are available in die form. Typical delivery for die products is 2-3 weeks ARO. For Custom designs, delivery is 3-4 weeks ARO. Certain items may be available from stock. Inventory is periodically updated. All devices for chip and wire applications are 100% tested, visual inspected and shipped in waffle packs (WP). MOUNT FLANGE INFORMATION Material Copper, Nickel plated per QQ-N-290 Terminals Beryllium Copper with hot solder DIP per RCA part number 1980020-3, and the remainder Gold Plated per MIL-G-45204, Type II, class 00. Available as 99.99% pure silver on special request. Terminal Strength When tested in accordance with MIL-STD-202 method 211 test condition A, lead shall meet with stand a 12 ounce axial pull (Copper). Cover 96% Al2O3 alumina ceramic AlN FLANGED POWER RESISTOR DIE LAYOUT / MECHANICAL SPECIFICATIONS 40W, 9.77GHz, ALUMINIUM NITRIDE FLANGED POWER RESISTORS USMRPFN10005030AN-40W-9G77 FLANGE MECHANICAL INFORMATION Flange model FL01N 40W, 9.77GHz, ALUMINIUM NITRIDE FLANGED POWER RESISTORS USMRPFN10005030AN-40W-9G77 flange mechanical data - standard model FL01N Flange model FL02N 40W, 9.77GHz, ALUMINIUM NITRIDE FLANGED POWER RESISTORS USMRPFN10005030AN-40W-9G77 flange mechanical data - model FL02N Flange model FL03N 40W, 9.77GHz, ALUMINIUM NITRIDE FLANGED POWER RESISTORS USMRPFN10005030AN-40W-9G77 flange mechanical data - model FL03N FLANGED POWER RESISTORS S PARAMETERS 40W, 9.77GHz, ALUMINIUM NITRIDE FLANGED POWER RESISTORS USMRPFN10005030AN-40W-9G77 RETURN LOSS S-PARAMETERS STANDARD PRODUCTS ORDERING INFORMATION USM P/N FLANGE R [Ω] MIN. QTY U/P [$] USMRPFN10005030AN-40W-500-1%-FL01N FL01N 50 USMRPFN10005030AN-40W-500-1%-FL02N FL02N 50 USMRPFN10005030AN-40W-500-1%-FL03N FL03N 50 USMRPFN10005030AN-40W-101-1%-FL01N FL01N 100 USMRPFN10005030AN-40W-101-1%-FL02N FL02N 100 USMRPFN10005030AN-40W-101-1%-FL03N FL03N 100 PART NUMBER BUILDER R [Ω] R multiplier TOLERANCE FLANGE Find part # Vmax [V] F@3dB [GHz] STANDARD EIA-24 VALUES - PRODUCTS ORDERING INFORMATION USM P/N FLANGE R [Ω] USM P/N FLANGE R [Ω] USMRPFN10005030AN-40W-1R0 -FL01N 1.0 USMRPFN10005030AN-40W-100 -FL02N 10.0 USMRPFN10005030AN-40W-1R0 -FL02N 1.0 USMRPFN10005030AN-40W-100 -FL03N 10.0 USMRPFN10005030AN-40W-1R0 -FL03N 1.0 USMRPFN10005030AN-40W-110 -FL01N 11.0 USMRPFN10005030AN-40W-1R1 -FL01N 1.1 USMRPFN10005030AN-40W-110 -FL02N 11.0 USMRPFN10005030AN-40W-1R1 -FL02N 1.1 USMRPFN10005030AN-40W-110 -FL03N 11.0 USMRPFN10005030AN-40W-1R1 -FL03N 1.1 USMRPFN10005030AN-40W-120 -FL01N 12.0 USMRPFN10005030AN-40W-1R2 -FL01N 1.2 USMRPFN10005030AN-40W-120 -FL02N 12.0 USMRPFN10005030AN-40W-1R2 -FL02N 1.2 USMRPFN10005030AN-40W-120 -FL03N 12.0 USMRPFN10005030AN-40W-1R2 -FL03N 1.2 USMRPFN10005030AN-40W-130 -FL01N 13.0 USMRPFN10005030AN-40W-1R3 -FL01N 1.3 USMRPFN10005030AN-40W-130 -FL02N 13.0 USMRPFN10005030AN-40W-1R3 -FL02N 1.3 USMRPFN10005030AN-40W-130 -FL03N 13.0 USMRPFN10005030AN-40W-1R3 -FL03N 1.3 USMRPFN10005030AN-40W-150 -FL01N 15.0 USMRPFN10005030AN-40W-1R5 -FL01N 1.5 USMRPFN10005030AN-40W-150 -FL02N 15.0 USMRPFN10005030AN-40W-1R5 -FL02N 1.5 USMRPFN10005030AN-40W-150 -FL03N 15.0 USMRPFN10005030AN-40W-1R5 -FL03N 1.5 USMRPFN10005030AN-40W-160 -FL01N 16.0 USMRPFN10005030AN-40W-1R6 -FL01N 1.6 USMRPFN10005030AN-40W-160 -FL02N 16.0 USMRPFN10005030AN-40W-1R6 -FL02N 1.6 USMRPFN10005030AN-40W-160 -FL03N 16.0 USMRPFN10005030AN-40W-1R6 -FL03N 1.6 USMRPFN10005030AN-40W-180 -FL01N 18.0 USMRPFN10005030AN-40W-1R8 -FL01N 1.8 USMRPFN10005030AN-40W-180 -FL02N 18.0 USMRPFN10005030AN-40W-1R8 -FL02N 1.8 USMRPFN10005030AN-40W-180 -FL03N 18.0 USMRPFN10005030AN-40W-1R8 -FL03N 1.8 USMRPFN10005030AN-40W-200 -FL01N 20.0 USMRPFN10005030AN-40W-2R0 -FL01N 2.0 USMRPFN10005030AN-40W-200 -FL02N 20.0 USMRPFN10005030AN-40W-2R0 -FL02N 2.0 USMRPFN10005030AN-40W-200 -FL03N 20.0 USMRPFN10005030AN-40W-2R0 -FL03N 2.0 USMRPFN10005030AN-40W-220 -FL01N 22.0 USMRPFN10005030AN-40W-2R2 -FL01N 2.2 USMRPFN10005030AN-40W-220 -FL02N 22.0 USMRPFN10005030AN-40W-2R2 -FL02N 2.2 USMRPFN10005030AN-40W-220 -FL03N 22.0 USMRPFN10005030AN-40W-2R2 -FL03N 2.2 USMRPFN10005030AN-40W-240 -FL01N 24.0 USMRPFN10005030AN-40W-2R4 -FL01N 2.4 USMRPFN10005030AN-40W-240 -FL02N 24.0 USMRPFN10005030AN-40W-2R4 -FL02N 2.4 USMRPFN10005030AN-40W-240 -FL03N 24.0 USMRPFN10005030AN-40W-2R4 -FL03N 2.4 USMRPFN10005030AN-40W-270 -FL01N 27.0 USMRPFN10005030AN-40W-2R7 -FL01N 2.7 USMRPFN10005030AN-40W-270 -FL02N 27.0 USMRPFN10005030AN-40W-2R7 -FL02N 2.7 USMRPFN10005030AN-40W-270 -FL03N 27.0 USMRPFN10005030AN-40W-2R7 -FL03N 2.7 USMRPFN10005030AN-40W-300 -FL01N 30.0 USMRPFN10005030AN-40W-3R0 -FL01N 3.0 USMRPFN10005030AN-40W-300 -FL02N 30.0 USMRPFN10005030AN-40W-3R0 -FL02N 3.0 USMRPFN10005030AN-40W-300 -FL03N 30.0 USMRPFN10005030AN-40W-3R0 -FL03N 3.0 USMRPFN10005030AN-40W-330 -FL01N 33.0 USMRPFN10005030AN-40W-3R3 -FL01N 3.3 USMRPFN10005030AN-40W-330 -FL02N 33.0 USMRPFN10005030AN-40W-3R3 -FL02N 3.3 USMRPFN10005030AN-40W-330 -FL03N 33.0 USMRPFN10005030AN-40W-3R3 -FL03N 3.3 USMRPFN10005030AN-40W-360 -FL01N 36.0 USMRPFN10005030AN-40W-3R6 -FL01N 3.6 USMRPFN10005030AN-40W-360 -FL02N 36.0 USMRPFN10005030AN-40W-3R6 -FL02N 3.6 USMRPFN10005030AN-40W-360 -FL03N 36.0 USMRPFN10005030AN-40W-3R6 -FL03N 3.6 USMRPFN10005030AN-40W-390 -FL01N 39.0 USMRPFN10005030AN-40W-3R9 -FL01N 3.9 USMRPFN10005030AN-40W-390 -FL02N 39.0 USMRPFN10005030AN-40W-3R9 -FL02N 3.9 USMRPFN10005030AN-40W-390 -FL03N 39.0 USMRPFN10005030AN-40W-3R9 -FL03N 3.9 USMRPFN10005030AN-40W-430 -FL01N 43.0 USMRPFN10005030AN-40W-4R3 -FL01N 4.3 USMRPFN10005030AN-40W-430 -FL02N 43.0 USMRPFN10005030AN-40W-4R3 -FL02N 4.3 USMRPFN10005030AN-40W-430 -FL03N 43.0 USMRPFN10005030AN-40W-4R3 -FL03N 4.3 USMRPFN10005030AN-40W-470 -FL01N 47.0 USMRPFN10005030AN-40W-4R7 -FL01N 4.7 USMRPFN10005030AN-40W-470 -FL02N 47.0 USMRPFN10005030AN-40W-4R7 -FL02N 4.7 USMRPFN10005030AN-40W-470 -FL03N 47.0 USMRPFN10005030AN-40W-4R7 -FL03N 4.7 USMRPFN10005030AN-40W-500 -FL01N 50.0 USMRPFN10005030AN-40W-5R0 -FL01N 5.0 USMRPFN10005030AN-40W-500 -FL02N 50.0 USMRPFN10005030AN-40W-5R0 -FL02N 5.0 USMRPFN10005030AN-40W-500 -FL03N 50.0 USMRPFN10005030AN-40W-5R0 -FL03N 5.0 USMRPFN10005030AN-40W-510 -FL01N 51.0 USMRPFN10005030AN-40W-5R1 -FL01N 5.1 USMRPFN10005030AN-40W-510 -FL02N 51.0 USMRPFN10005030AN-40W-5R1 -FL02N 5.1 USMRPFN10005030AN-40W-510 -FL03N 51.0 USMRPFN10005030AN-40W-5R1 -FL03N 5.1 USMRPFN10005030AN-40W-560 -FL01N 56.0 USMRPFN10005030AN-40W-5R6 -FL01N 5.6 USMRPFN10005030AN-40W-560 -FL02N 56.0 USMRPFN10005030AN-40W-5R6 -FL02N 5.6 USMRPFN10005030AN-40W-560 -FL03N 56.0 USMRPFN10005030AN-40W-5R6 -FL03N 5.6 USMRPFN10005030AN-40W-620 -FL01N 62.0 USMRPFN10005030AN-40W-6R2 -FL01N 6.2 USMRPFN10005030AN-40W-620 -FL02N 62.0 USMRPFN10005030AN-40W-6R2 -FL02N 6.2 USMRPFN10005030AN-40W-620 -FL03N 62.0 USMRPFN10005030AN-40W-6R2 -FL03N 6.2 USMRPFN10005030AN-40W-680 -FL01N 68.0 USMRPFN10005030AN-40W-6R8 -FL01N 6.8 USMRPFN10005030AN-40W-680 -FL02N 68.0 USMRPFN10005030AN-40W-6R8 -FL02N 6.8 USMRPFN10005030AN-40W-680 -FL03N 68.0 USMRPFN10005030AN-40W-6R8 -FL03N 6.8 USMRPFN10005030AN-40W-750 -FL01N 75.0 USMRPFN10005030AN-40W-7R5 -FL01N 7.5 USMRPFN10005030AN-40W-750 -FL02N 75.0 USMRPFN10005030AN-40W-7R5 -FL02N 7.5 USMRPFN10005030AN-40W-750 -FL03N 75.0 USMRPFN10005030AN-40W-7R5 -FL03N 7.5 USMRPFN10005030AN-40W-820 -FL01N 82.0 USMRPFN10005030AN-40W-8R2 -FL01N 8.2 USMRPFN10005030AN-40W-820 -FL02N 82.0 USMRPFN10005030AN-40W-8R2 -FL02N 8.2 USMRPFN10005030AN-40W-820 -FL03N 82.0 USMRPFN10005030AN-40W-8R2 -FL03N 8.2 USMRPFN10005030AN-40W-910 -FL01N 91.0 USMRPFN10005030AN-40W-9R1 -FL01N 9.1 USMRPFN10005030AN-40W-910 -FL02N 91.0 USMRPFN10005030AN-40W-9R1 -FL02N 9.1 USMRPFN10005030AN-40W-910 -FL03N 91.0 USMRPFN10005030AN-40W-9R1 -FL03N 9.1 USMRPFN10005030AN-40W-101 -FL01N 100.0 USMRPFN10005030AN-40W-100 -FL01N 10.0 USMRPFN10005030AN-40W-101 -FL02N 100.0 USMRPFN10005030AN-40W-100 -FL02N 10.0 USMRPFN10005030AN-40W-101 -FL03N 100.0 Products sold for space, military or medical applications, element evaluation and/or level K or S qualification are subject to minimum order levels to be established on a case by case basis. For any special applications, die level KGD qualification requirements, different packaging or custom configurations, contact sales department. INSTANT QUOTE US Microwaves P/N Quantity E-mail ORDERING: Order on line at: http://www.usmicrowaves.com/porder.htm. A copy of the order along with an order confirmation receipt is issued instantly for all orders placed on line. On line Orders have to be verified, accepted and acknowledged by US Microwaves sales department in writing before, becoming non cancelable binding contracts. DELIVERY: Typical delivery for die products packaged in waffle packs is 2-4 weeks ARO. For Custom designs, delivery is 3-5 weeks ARO. Certain items may be available from stock with delivery up to 1 week. SHIPPING/PACKAGING: All devices for chip and wire applications are 100% tested, visual inspected and shipped in waffle packs (WP). For larger orders,>10k pc, devices can be shipped on film frame. For smaller quantities, it may vary. For high volume automated assembly, devices may be supplied as 4" wafers 100% tested, inked and diced on expanded film frame (FF). SAMPLES: Samples are available only for customers that have issued firm orders pending qualification of product in a particular application. GUARANTEED SUPPLY! US Microwaves guarantees continuous supply and availability of all standard products provided minimum order quantities are met. U.S. Microwaves has made every effort to have this information as accurate as possible. However, no responsibility is assumed by U.S. Microwaves for its use, nor for any infringements of rights of third parties which may result from its use. U.S. Microwaves reserves the right to revise the content or modify its product line without prior notice. U.S. Microwaves products are not authorized for and should not be used within support systems which are intended for surgical implants into the body, to support or sustain life, in aircraft, space equipment, submarine, or nuclear facility applications without the specific written consent of U.S. Microwaves. Home Product Tree Tech. Support PDF Request Quote Inventory Place Order Contact sales Last updated: US MICROWAVES www.semiconix-semiconductor.com Tel:(408)986-8026 Fax:(408)986-8027 ©1990- US MICROWAVES All rights reserved. No material from this site may be used or reproduced without permission.



US MICROWAVES   40W, 9.77GHz, ALUMINIUM NITRIDE FLANGED POWER RESISTORS
Advanced Microwave Components   USMRPFN10005030AN-40W-9G77



FEATURES
APPLICATIONS
AlN FLANGED POWER RESISTOR
High power dissipation while working up to GHz range frequencies
Low insertion loss, low temperature coefficient
High reliability and ruggedness
Wide operating temperature range
Available mounting flange: Copper, Nickel plated
Microwave and RF high power terminations
Resistive microwave power dividers
Wilkinson power dividers
Power attenuators
Microwave power amplifiers
 40W, 9.77GHz, ALUMINIUM NITRIDE FLANGED POWER RESISTORS USMRPFN10005030AN-40W-9G77

PRODUCT DESCRIPTION AND SHORT APPLICATION NOTE
USMRPFN10005030AN-40W-9G77, 40W, 9.77GHz, Aluminium Nitride (AlN) flanged power resistors are designed to be used as microwave and RF power resistors, power terminations, Wilkinson power dividers, power attenuators, microwave power amplifiers, etc. Flanged thin film power resistors and terminations have low temperature coefficients, low noise and increased long term stability compared to their thick film counterpart (see app note 110). In high power applications, temperature coefficient of resistance and long term stability have to be the best available.

TECHNOLOGY DESCRIPTION: SEMICONDUCTOR-THIN FILM MANUFACTURING
All thin film microwave products are manufactured using advanced semiconductors and thin film technologies including ultra-stable and self passivating Tantalum Nitride resistors, gold interconnect metallization and reliable MNOS capacitors to achieve excellent uniformity, performance and reliability. Thin film technology is the preferred solution for all applications that require low noise, long term stability and excellent performance at very high frequencies. US Microwaves employs proprietary thin film technologies for deposition of a wide range of resistive films with sheet resistance films from 1Ω/sq to 10,000Ω/sq. All US Microwaves products are available in die form and are ideal for high reliability hybrid and multi chip module applications.
All US Microwaves products are manufactured using GOLD CHIP TECHNOLOGY™ a trade mark of Semiconix Corporation.

ELECTRICAL/MECHANICAL CHARACTERISTICS
PARAMETER VALUE UNITS
Resistance range 1 - 100 Ω
Maxim Power 40 W
Maxim Capacitance 0.3259455 pF
3dB frequency (defined for 50ohm  resistance) 9.77 GHz
Temperature Coefficient -55C to 150C 100 ppm/°C
Tolerances available 1 %
Operating Temperature range -65 to 200 °C
Working voltage (Vw) SQRT(P*R) V
Peak voltage at 25C, 5 sec 1.5x(Vw) V
Insulation resistance at 25 C 1e+13 Ω
ONLY Proper die handling equipment and procedures should be employed. Stresses beyond listed absolute maximum ratings may cause permanent damage to the device.

GENERAL DIE INFORMATION
Substrate Thickness [mils] Size [mils] Backside metal
Aluminium Nitride
(AlN)		 30±3 100x50±2 Backside of the die is metallized with standard Ti/Pt/Au compatible with Au-Sn, Au-Ge or silver filled conductive epoxy. Custom metallization is available for special orders.
All US Microwaves products are available in die form. Typical delivery for die products is 2-3 weeks ARO. For Custom designs, delivery is 3-4 weeks ARO. Certain items may be available from stock. Inventory is periodically updated. All devices for chip and wire applications are 100% tested, visual inspected and shipped in waffle packs (WP).

MOUNT FLANGE INFORMATION
Material Copper, Nickel plated per QQ-N-290
Terminals Beryllium Copper with hot solder DIP per RCA part number 1980020-3, and the remainder Gold Plated per MIL-G-45204, Type II, class 00. Available as 99.99% pure silver on special request.
Terminal Strength When tested in accordance with MIL-STD-202 method 211 test condition A, lead shall meet with stand a 12 ounce axial pull (Copper).
Cover 96% Al2O3 alumina ceramic

AlN FLANGED POWER RESISTOR DIE LAYOUT / MECHANICAL SPECIFICATIONS
40W, 9.77GHz, ALUMINIUM NITRIDE FLANGED POWER RESISTORS USMRPFN10005030AN-40W-9G77
FLANGE MECHANICAL INFORMATION

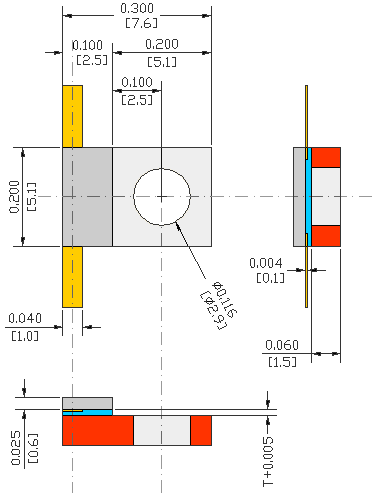

Flange model FL01N
40W, 9.77GHz, ALUMINIUM NITRIDE FLANGED POWER RESISTORS USMRPFN10005030AN-40W-9G77 flange mechanical data - standard model FL01N

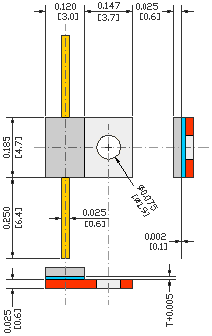

Flange model FL02N
40W, 9.77GHz, ALUMINIUM NITRIDE FLANGED POWER RESISTORS USMRPFN10005030AN-40W-9G77 flange mechanical data - model FL02N

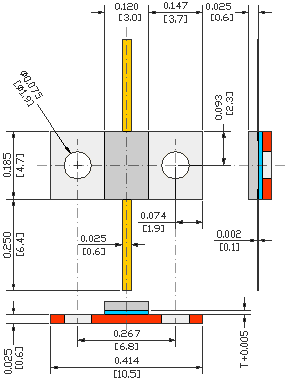

Flange model FL03N
40W, 9.77GHz, ALUMINIUM NITRIDE FLANGED POWER RESISTORS USMRPFN10005030AN-40W-9G77 flange mechanical data - model FL03N

FLANGED POWER RESISTORS S PARAMETERS
40W, 9.77GHz, ALUMINIUM NITRIDE FLANGED POWER RESISTORS USMRPFN10005030AN-40W-9G77 RETURN LOSS S-PARAMETERS

STANDARD PRODUCTS ORDERING INFORMATION
USM P/N FLANGE R [Ω] MIN. QTY U/P [$]
USMRPFN10005030AN-40W-500-1%-FL01N FL01N 50
USMRPFN10005030AN-40W-500-1%-FL02N FL02N 50
USMRPFN10005030AN-40W-500-1%-FL03N FL03N 50
USMRPFN10005030AN-40W-101-1%-FL01N FL01N 100
USMRPFN10005030AN-40W-101-1%-FL02N FL02N 100
USMRPFN10005030AN-40W-101-1%-FL03N FL03N 100

PART NUMBER BUILDER
R [Ω] R multiplier TOLERANCE FLANGE
Find part # Vmax [V] F@3dB [GHz]

STANDARD EIA-24 VALUES - PRODUCTS ORDERING INFORMATION
USM P/NFLANGER [Ω]USM P/NFLANGER [Ω]
USMRPFN10005030AN-40W-1R0-FL01N1.0USMRPFN10005030AN-40W-100-FL02N10.0
USMRPFN10005030AN-40W-1R0-FL02N1.0USMRPFN10005030AN-40W-100-FL03N10.0
USMRPFN10005030AN-40W-1R0-FL03N1.0USMRPFN10005030AN-40W-110-FL01N11.0
USMRPFN10005030AN-40W-1R1-FL01N1.1USMRPFN10005030AN-40W-110-FL02N11.0
USMRPFN10005030AN-40W-1R1-FL02N1.1USMRPFN10005030AN-40W-110-FL03N11.0
USMRPFN10005030AN-40W-1R1-FL03N1.1USMRPFN10005030AN-40W-120-FL01N12.0
USMRPFN10005030AN-40W-1R2-FL01N1.2USMRPFN10005030AN-40W-120-FL02N12.0
USMRPFN10005030AN-40W-1R2-FL02N1.2USMRPFN10005030AN-40W-120-FL03N12.0
USMRPFN10005030AN-40W-1R2-FL03N1.2USMRPFN10005030AN-40W-130-FL01N13.0
USMRPFN10005030AN-40W-1R3-FL01N1.3USMRPFN10005030AN-40W-130-FL02N13.0
USMRPFN10005030AN-40W-1R3-FL02N1.3USMRPFN10005030AN-40W-130-FL03N13.0
USMRPFN10005030AN-40W-1R3-FL03N1.3USMRPFN10005030AN-40W-150-FL01N15.0
USMRPFN10005030AN-40W-1R5-FL01N1.5USMRPFN10005030AN-40W-150-FL02N15.0
USMRPFN10005030AN-40W-1R5-FL02N1.5USMRPFN10005030AN-40W-150-FL03N15.0
USMRPFN10005030AN-40W-1R5-FL03N1.5USMRPFN10005030AN-40W-160-FL01N16.0
USMRPFN10005030AN-40W-1R6-FL01N1.6USMRPFN10005030AN-40W-160-FL02N16.0
USMRPFN10005030AN-40W-1R6-FL02N1.6USMRPFN10005030AN-40W-160-FL03N16.0
USMRPFN10005030AN-40W-1R6-FL03N1.6USMRPFN10005030AN-40W-180-FL01N18.0
USMRPFN10005030AN-40W-1R8-FL01N1.8USMRPFN10005030AN-40W-180-FL02N18.0
USMRPFN10005030AN-40W-1R8-FL02N1.8USMRPFN10005030AN-40W-180-FL03N18.0
USMRPFN10005030AN-40W-1R8-FL03N1.8USMRPFN10005030AN-40W-200-FL01N20.0
USMRPFN10005030AN-40W-2R0-FL01N2.0USMRPFN10005030AN-40W-200-FL02N20.0
USMRPFN10005030AN-40W-2R0-FL02N2.0USMRPFN10005030AN-40W-200-FL03N20.0
USMRPFN10005030AN-40W-2R0-FL03N2.0USMRPFN10005030AN-40W-220-FL01N22.0
USMRPFN10005030AN-40W-2R2-FL01N2.2USMRPFN10005030AN-40W-220-FL02N22.0
USMRPFN10005030AN-40W-2R2-FL02N2.2USMRPFN10005030AN-40W-220-FL03N22.0
USMRPFN10005030AN-40W-2R2-FL03N2.2USMRPFN10005030AN-40W-240-FL01N24.0
USMRPFN10005030AN-40W-2R4-FL01N2.4USMRPFN10005030AN-40W-240-FL02N24.0
USMRPFN10005030AN-40W-2R4-FL02N2.4USMRPFN10005030AN-40W-240-FL03N24.0
USMRPFN10005030AN-40W-2R4-FL03N2.4USMRPFN10005030AN-40W-270-FL01N27.0
USMRPFN10005030AN-40W-2R7-FL01N2.7USMRPFN10005030AN-40W-270-FL02N27.0
USMRPFN10005030AN-40W-2R7-FL02N2.7USMRPFN10005030AN-40W-270-FL03N27.0
USMRPFN10005030AN-40W-2R7-FL03N2.7USMRPFN10005030AN-40W-300-FL01N30.0
USMRPFN10005030AN-40W-3R0-FL01N3.0USMRPFN10005030AN-40W-300-FL02N30.0
USMRPFN10005030AN-40W-3R0-FL02N3.0USMRPFN10005030AN-40W-300-FL03N30.0
USMRPFN10005030AN-40W-3R0-FL03N3.0USMRPFN10005030AN-40W-330-FL01N33.0
USMRPFN10005030AN-40W-3R3-FL01N3.3USMRPFN10005030AN-40W-330-FL02N33.0
USMRPFN10005030AN-40W-3R3-FL02N3.3USMRPFN10005030AN-40W-330-FL03N33.0
USMRPFN10005030AN-40W-3R3-FL03N3.3USMRPFN10005030AN-40W-360-FL01N36.0
USMRPFN10005030AN-40W-3R6-FL01N3.6USMRPFN10005030AN-40W-360-FL02N36.0
USMRPFN10005030AN-40W-3R6-FL02N3.6USMRPFN10005030AN-40W-360-FL03N36.0
USMRPFN10005030AN-40W-3R6-FL03N3.6USMRPFN10005030AN-40W-390-FL01N39.0
USMRPFN10005030AN-40W-3R9-FL01N3.9USMRPFN10005030AN-40W-390-FL02N39.0
USMRPFN10005030AN-40W-3R9-FL02N3.9USMRPFN10005030AN-40W-390-FL03N39.0
USMRPFN10005030AN-40W-3R9-FL03N3.9USMRPFN10005030AN-40W-430-FL01N43.0
USMRPFN10005030AN-40W-4R3-FL01N4.3USMRPFN10005030AN-40W-430-FL02N43.0
USMRPFN10005030AN-40W-4R3-FL02N4.3USMRPFN10005030AN-40W-430-FL03N43.0
USMRPFN10005030AN-40W-4R3-FL03N4.3USMRPFN10005030AN-40W-470-FL01N47.0
USMRPFN10005030AN-40W-4R7-FL01N4.7USMRPFN10005030AN-40W-470-FL02N47.0
USMRPFN10005030AN-40W-4R7-FL02N4.7USMRPFN10005030AN-40W-470-FL03N47.0
USMRPFN10005030AN-40W-4R7-FL03N4.7USMRPFN10005030AN-40W-500-FL01N50.0
USMRPFN10005030AN-40W-5R0-FL01N5.0USMRPFN10005030AN-40W-500-FL02N50.0
USMRPFN10005030AN-40W-5R0-FL02N5.0USMRPFN10005030AN-40W-500-FL03N50.0
USMRPFN10005030AN-40W-5R0-FL03N5.0USMRPFN10005030AN-40W-510-FL01N51.0
USMRPFN10005030AN-40W-5R1-FL01N5.1USMRPFN10005030AN-40W-510-FL02N51.0
USMRPFN10005030AN-40W-5R1-FL02N5.1USMRPFN10005030AN-40W-510-FL03N51.0
USMRPFN10005030AN-40W-5R1-FL03N5.1USMRPFN10005030AN-40W-560-FL01N56.0
USMRPFN10005030AN-40W-5R6-FL01N5.6USMRPFN10005030AN-40W-560-FL02N56.0
USMRPFN10005030AN-40W-5R6-FL02N5.6USMRPFN10005030AN-40W-560-FL03N56.0
USMRPFN10005030AN-40W-5R6-FL03N5.6USMRPFN10005030AN-40W-620-FL01N62.0
USMRPFN10005030AN-40W-6R2-FL01N6.2USMRPFN10005030AN-40W-620-FL02N62.0
USMRPFN10005030AN-40W-6R2-FL02N6.2USMRPFN10005030AN-40W-620-FL03N62.0
USMRPFN10005030AN-40W-6R2-FL03N6.2USMRPFN10005030AN-40W-680-FL01N68.0
USMRPFN10005030AN-40W-6R8-FL01N6.8USMRPFN10005030AN-40W-680-FL02N68.0
USMRPFN10005030AN-40W-6R8-FL02N6.8USMRPFN10005030AN-40W-680-FL03N68.0
USMRPFN10005030AN-40W-6R8-FL03N6.8USMRPFN10005030AN-40W-750-FL01N75.0
USMRPFN10005030AN-40W-7R5-FL01N7.5USMRPFN10005030AN-40W-750-FL02N75.0
USMRPFN10005030AN-40W-7R5-FL02N7.5USMRPFN10005030AN-40W-750-FL03N75.0
USMRPFN10005030AN-40W-7R5-FL03N7.5USMRPFN10005030AN-40W-820-FL01N82.0
USMRPFN10005030AN-40W-8R2-FL01N8.2USMRPFN10005030AN-40W-820-FL02N82.0
USMRPFN10005030AN-40W-8R2-FL02N8.2USMRPFN10005030AN-40W-820-FL03N82.0
USMRPFN10005030AN-40W-8R2-FL03N8.2USMRPFN10005030AN-40W-910-FL01N91.0
USMRPFN10005030AN-40W-9R1-FL01N9.1USMRPFN10005030AN-40W-910-FL02N91.0
USMRPFN10005030AN-40W-9R1-FL02N9.1USMRPFN10005030AN-40W-910-FL03N91.0
USMRPFN10005030AN-40W-9R1-FL03N9.1USMRPFN10005030AN-40W-101-FL01N100.0
USMRPFN10005030AN-40W-100-FL01N10.0USMRPFN10005030AN-40W-101-FL02N100.0
USMRPFN10005030AN-40W-100-FL02N10.0USMRPFN10005030AN-40W-101-FL03N100.0

List prices are for standard products, available from stock. List prices for other quantities and tolerances are available on line through Instant Quote. For standard products available from stock, there is a minimum line item order. For custom products please inquire by contacting US Microwaves technical sales. No rights can be derived from pricing information provided on this website. Such information is indicative only, is showed for budgetary use only and subject to change by US MICROWAVES at any time and without notice.
Products sold for space, military or medical applications, element evaluation and/or level K or S qualification are subject to minimum order levels to be established on a case by case basis. For any special applications, die level KGD qualification requirements, different packaging or custom configurations, contact sales department.

INSTANT QUOTE
US Microwaves P/N Quantity E-mail


ORDERING: Order on line at: http://www.usmicrowaves.com/porder.htm. A copy of the order along with an order confirmation receipt is issued instantly for all orders placed on line. On line Orders have to be verified, accepted and acknowledged by US Microwaves sales department in writing before, becoming non cancelable binding contracts.
DELIVERY: Typical delivery for die products packaged in waffle packs is 2-4 weeks ARO. For Custom designs, delivery is 3-5 weeks ARO. Certain items may be available from stock with delivery up to 1 week.
SHIPPING/PACKAGING: All devices for chip and wire applications are 100% tested, visual inspected and shipped in waffle packs (WP). For larger orders,>10k pc, devices can be shipped on film frame. For smaller quantities, it may vary. For high volume automated assembly, devices may be supplied as 4" wafers 100% tested, inked and diced on expanded film frame (FF).
SAMPLES: Samples are available only for customers that have issued firm orders pending qualification of product in a particular application.

GUARANTEED SUPPLY! US Microwaves guarantees continuous supply and availability of all standard products provided minimum order quantities are met.

U.S. Microwaves has made every effort to have this information as accurate as possible. However, no responsibility is assumed by U.S. Microwaves for its use, nor for any infringements of rights of third parties which may result from its use. U.S. Microwaves reserves the right to revise the content or modify its product line without prior notice. U.S. Microwaves products are not authorized for and should not be used within support systems which are intended for surgical implants into the body, to support or sustain life, in aircraft, space equipment, submarine, or nuclear facility applications without the specific written consent of U.S. Microwaves.
